Description

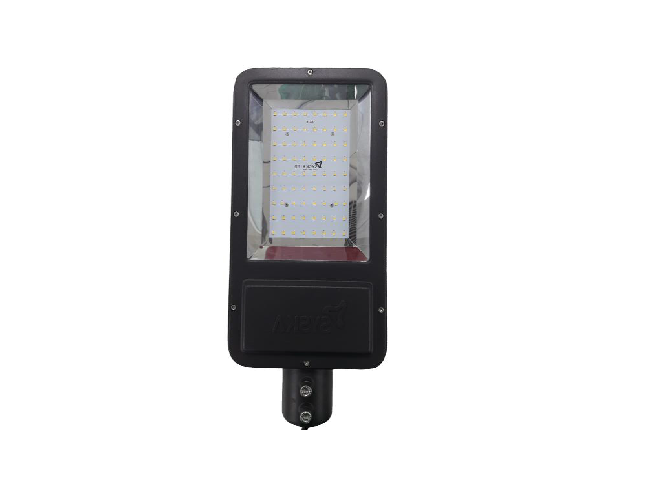

Specification of SYSKA LED Street Light SSK-CLF-SF-40W
LED parent spec table| Description | Value |
|---|---|
| Input Power | 40W |
| Input Voltage | 90 To 300 VAC 50Hz / 60Hz |
| Input Current (@230V AC) | <700mA |
| Size (mm) | 395 X 190 X 85 |
| Life expectancy of LEDs | > 50000 hrs. |
| Color Temperature | 3000K~6500K |
| CRI | > 80 |
| Power Factor | > 0.95 At Full Load & 230 VAC |
| Beam Angle | >150⁰ |
| Type of LED Package | Mid Power /High Power SMD |
| Make of LED | Osram |
| Luminous Efficacy of LED Package | >140 Lumens/Watt |
| System Efficacy of Luminare | >100 Lumens/Watt |
| System Total Lumens | >4000 |
| Beam Angle | >150⁰ |
| Driver efficiency | >90% |
| Color rendering index | > 80 |
| Finish | Aesthetic and slendor design of housing with powder coated matt/glossy finish. |
| Operating Temperature | (-)20⁰C to (+)60⁰C |
| Housing | |
| THD (Total Harmonic Distortion) | <10% as per IEC 61000-3-2 |
| Driver Efficiency | >90% |
| Surge/Spike Protection | Upto 4KV Onboard (Extended Upto 10KV with External SPD) L, N, E as per IEC 61000-4-5 |
| Line Protection | Under Voltage and Over Voltage Protection |
| Lamp Housing | High Pressure Diecast aluminum housing with Stainless Steel fastners |
| EMI - EMC (Electro-magnetic Interference - Electro-magnetic compatibility) | As Per CISPR 15 A (Self compliance certificate) |
| Cover | UV stabilized Toughned Glass Cover |
| Ingress Protection | Upto IP67 |
| Impact Resistance | Upto IK06 |
| Mounting arrangement | Suitable upto 40 mm dia pipe. |
| Thermal management | External heat sink of Aluminum housing with fins, aluminum metal-core printed circuit board of thermal conductivity more than than 2.0W/mk and thermal pad with thermal conductivity more than 1.5W/mk. |
