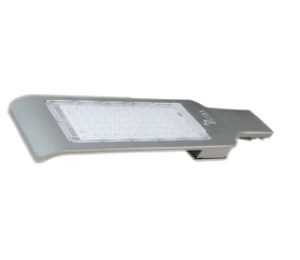

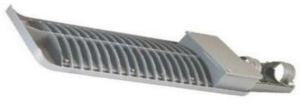

Specification of SYSKA NST LED Street Light SSK-NST-20W
| Description | Value |
|---|---|
| Input Power | 20W |
| Input Voltage | 90 - 300V AC 50 Hz |
| Size (mm) | 283x112x43 |
| Life expectancy of LEDs | > 50000 hrs. |
| Color Temperature | 3000K-6500K |
| CRI | >75 |
| Power Factor | > 0.95 At Full Load & 240 VAC |
| Beam Angle | 120° |
| Luminous Efficacy of LED Package | >120 Lumens/Watt |
| System Efficacy of Luminaire | >100 Lum/Watt |
| Lumens | >2000 |
| Make of LED | LUMILED/OSRAM |
| Operating Temperature | (-)20°C to (+) 60°C |
| THD (Total Harmonic Distortion) | <15% as per IEC 61000-3-2 |
| Driver Efficiency | >85% |
| Line Protection | Under Voltage and Over Voltage Protection |
| Lamp Housing | High Pressure Diecast aluminum housing with Stainless Steel fastners |
| EMI - EMC (Electro-magnetic Interference - Electro-magnetic compatibility) | As Per CISPER 15 A (Self compliance certificate) |
| Lens Material | Glass Cover |
| Ingress Protection | Upto IP 65 |
| Impact Resistance | Upto IK 06 |
| Mounting arrangement | Mounting Bracket |
| Thermal management | External heat sink of Aluminum housing, aluminum metal-core printed circuit board of thermal conductivity more than than 2.0W/mk and thermal pad with thermal conductivity more than 1.5W/mk. |
| Type of LED Package | Mid Power /High Power SMD |
| PCB Type | MC PCB |
| Driver Efficiency | >90% |
| Surge Spike Protection | Upto 3KV On board |
| Finish | Aesthetic and slendor design of housing with powder coated matt/glossy finish. |
| Cover | UV stabilized Polycarbonate Cover with Lens |
| Mounting Arrangement | Upto 40 mm dia pipe |
| Warranty | 2 Years |
