Description

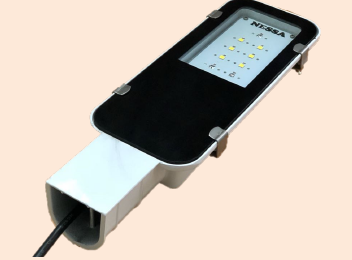

NES 20W AC LED Street Light
| Description | Value |
|---|---|
| Input Power | 20W |
| Input Voltage | 20 - 270V, 50 Hz |
| Size (mm) | (270X110X55)mm |
| Life expectancy of LEDs | (270X110X55)mm |
| Color Temperature | 2700-6500 K |
| CRI | >70 |
| Power Factor | >0.95 |
| Beam Angle | 120° |
| Lumen per watt | >= 145 lm/W |
| Make of LED | OSRAM /BRIDGELUX LED |
| Optics | 70*140 |
| Ingress Protection | IP65 |
| Maximum Temperature of Heat Sink | 65° C |
| Weight | 0.66 Kg |
| THD (Total Harmonic Distortion) | <15% |
| Driver Efficiency | >85% |
| Surge/Spike Protection | >4.5 KV (Internal) |
| Recommended Pole Height | 5 Meter |
| Recommended Pole to Pole Distance | 8-10 Meter |
| Net Power Consumption | 20 ± 10% W |
| Storage Temperature | 35°C |
| Primary Thermal Management | Single Piece MCPCB with Thermal Pads |
| Secondary Thermal Management | High Pressure Aluminium Die Cast |
