SKYSHADE Shyshelves Vision Glazing

Description

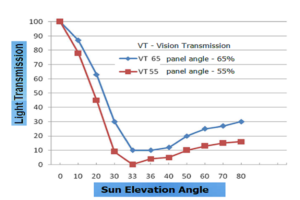

Sun elevation angle	SHGC	U Value	Vision Transmission
0	0.6	2.5w / sq.m. K	65%
40° – 60°	0.2	–

Glass Specification: 5 mm clear with 12mm air gap;

U Value – U Value is the rate of heat transfer through a structure divided by the difference in temperature across structure.

SHGC – Solar Heat Gain Coefficient is the fraction of incident solar radiation admitted through a window, both directly transmitted and absorbed and subsequently released inward. It is expressed between 0 and 1.
