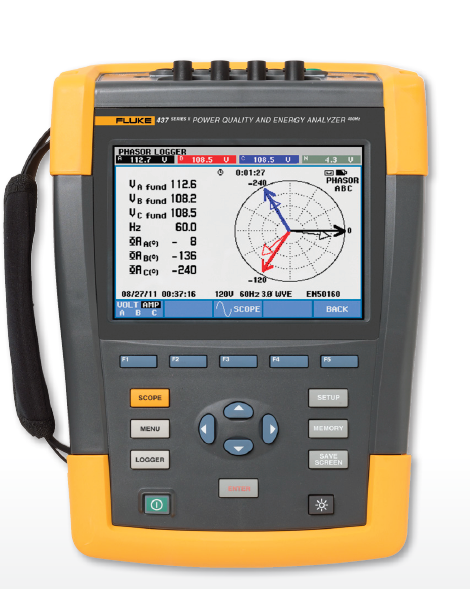

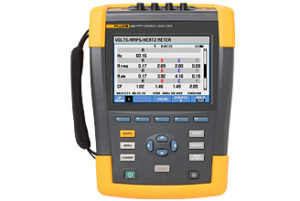

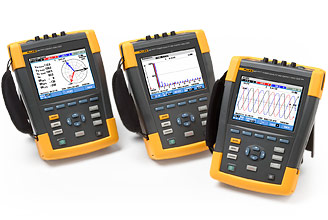

Fluke Power Quality and Energy Analyzer

This energy monetization capability allows you to identify the most energy-wasteful areas of your facility so you can determine potential energy saving solutions. Add basic power quality measurements to the package and you’re got yourself one powerful troubleshooting tool.

Applications

Energy monetization – calculate the fiscal cost of energy waste due to poor power quality
Energy assessment – quantify the before and after installation improvements in energy consumption to justify energy saving devices
Frontline troubleshooting – quickly diagnose problems on-screen to get your operation back online
Predictive maintenance – detect and prevent power quality issues before they cause downtime
Long-term analysis – uncover hard-to-find or intermittent issues
Load studies – verify electrical system capacity before adding loads

Add to Wishlist

Categories: Analyzing Devices, Energy Monitors

Description
Reviews (0)

Description

Search:

Product specifications

	Model	Measurement range	Resolution	Accuracy
Volt
Vrms (ac+dc)	434-II	1 V to 1000 V phase to neutral	0.1 V	± 0.5% of nominal voltage****
Vpk		1 Vpk to 1400 Vpk	1 V	5% of nominal voltage
Voltage Crest Factor (CF)		1.0 > 2.8	0.01	± 5 %
Vrms½	434-II	1 V to 1000 V phase to neutral	0.1 V	± 1% of nominal voltage
Vfund	434-II	1 V to 1000 V phase to neutral	0.1 V	± 0.5% of nominal voltage
Amps (accuracy excluding clamp accuracy)
Amps (ac +dc)	i430-Flex 1x	5 A to 6000 A	1:00 AM	± 0.5% ± 5 counts
	i430-Flex 10x	0.5 A to 600 A	0.1 A	± 0.5% ± 5 counts
	1mV/A 1x	5 A to 2000 A	1A	± 0.5% ± 5 counts
	1mV/A 10x	0.5 A A to 200 A (ac only)	0.1 A	± 0.5% ± 5 counts
Apk	i430-Flex	8400 Apk	1 Arms	± 5 %
	1mV/A	5500 Apk	1 Arms	± 5 %
A Crest Factor (CF)		1 to 10	0.01	± 5 %
Amps½	i430-Flex 1x	5 A to 6000 A	1 A	± 1% ± 10 counts
	i430-Flex 10x	0.5 A to 600 A	0.1 A	± 1% ± 10 counts
	1mV/A 1x	5 A to 2000 A	1A	± 1% ± 10 counts
	1mV/A 10x	0.5 A A to 200 A (ac only)	0.1 A	± 1% ± 10 counts
Afund	i430-Flex 1x	5 A to 6000 A	1:00 AM	± 0.5% ± 5 counts
	i430-Flex 10x	0.5 A to 600 A	0.1 A	± 0.5% ± 5 counts
	1mV/A 1x	5 A to 2000 A	1A	± 0.5% ± 5 counts
	1mV/A 10x	0.5 A A to 200 A (ac only)	0.1 A	± 0.5% ± 5 counts
Hz
Hz	Fluke 434 @ 50 Hz nominal	42.50 Hz to 57.50 Hz	0.01 Hz	± 0.01 Hz
	Fluke 434 @ 60 Hz nominal	51.00 Hz to 69.00 Hz	0.01 Hz	± 0.01 Hz
Power
Watts (VA, var)	i430-Flex	max 6000 MW	0.1 W to 1 MW	± 1% ± 10 counts
	1 mV/A	max 2000 MW	0.1 W to 1 MW	± 1% ± 10 counts
Power factor (Cos j/DPF)		0 to 1	0.001	± 0.1% @ nominal load conditions
Energy
kWh (kVAh, kvarh)	i430-Flex 10x	Depends on clamp scaling and V nominal		± 1% ± 10 counts
Energy loss	i430-Flex 10x	Depends on clamp scaling and V nominal		± 1% ± 10 counts Excluding line resistance accuracy
Harmonics
Harmonic order (n)		DC, 1 to 50 Grouping: Harmonic groups according to IEC 61000-4-7
Inter-harmonic order (n)		OFF, 1 to 50 Grouping: Harmonic and Interharmonic subgroups according to IEC 61000-4-7
Volts	%f	0.0 % to 100 %	0.10%	± 0.1% ± n x 0.1 %
	%r	0.0 % to 100 %	0.10%	± 0.1% ± n x 0.4 %
	Absolute	0.0 to 1000 V	0.1 V	± 5% *
	THD	0.0 % to 100 %	0.10%	± 2.5 %
Amps	%f	0.0 % to 100 %	0.10%	± 0.1% ± n x 0.1%
	%r	0.0 % to 100 %	0.10%	± 0.1% ± n x 0.4 %
	Absolute	0.0 to 600 A	0.1 A	± 5% ± 5 counts
	THD	0.0 % to 100 %	0.10%	± 2.5 %
Watts	%f or %r	0.0 % to 100 %	0.10%	± n x 2%
	Absolute	Depends on clamp scaling and V nominal		± 5% ± n x 2 % ± 10 counts
	THD	0.0 % to 100 %	0.10%	± 5 %
Phase Angle		-360° to +0°	1°	± n x 1°
Flicker
Plt, Pst, Pst(1min) Pinst		0.00 to 20.00	0.01	± 5 %
Unbalance
Volts	%	0.0 % to 20.0 %	0.10%	± 0.1 %
Amps	%	0.0 % to 20.0 %	0.10%	± 1 %
Mains signaling
Threshold levels		Threshold, limits and signaling duration is programable for two signaling frequencies
Signaling frequency		60 Hz to 3000 Hz	0.1 Hz
Relative V%		0 % to 100 %	0.10%	± 0.4 %
Absolute V3s (3 second avg.)		0.0 V to 1000 V	0.1 V	± 5 % of nominal voltage

General specifications

Case	Design Rugged, shock proof with integrated protective holster Drip and dust proof IP51 according to IEC60529 when used in tilt stand position Shock and vibration Shock 30 g, vibration: 3 g sinusoid, random 0.03 g 2 /Hz according to MIL-PRF-28800F Class 2
Display	Brightness: 200 cd/m 2 typ. using power adapter, 90 cd/m 2 typical using battery power Size: 127 mm x 88 mm (153 mm/6.0 in diagonal) LCD Resolution: 320 x 240 pixels Contrast and brightness: user-adjustable, temperature compensated
Memory	8GB SD card (SDHC compliant, FAT32 formatted) standard, upto 32GB optionally Screen save and multiple data memories for storing data including recordings (dependent on memory size)
Real-time clock	Time and date stamp for Trend mode, Transient display, System Monitor and event capture

Environmental

Operating temperature	0 °C ~ +40 °C; +40 °C ~ +50 °C excl. battery
Storage temperature	-20 °C ~ +60 °C
Humidity	+10 °C ~ +30 °C: 95% RH non-condensing
	+30 °C ~ +40 °C: 75% RH non-condensing
	+40 °C ~ +50 °C: 45% RH non-condensing
Maximum operating altitude	Up to 2,000 m (6666 ft) for CAT IV 600 V, CAT III 1000 V
	Up to 3,000 m (10,000 ft) for CAT III 600 V, CAT II 1000 V
	Maximum storage altitude 12 km (40,000 ft)
Electro-Magnetic-Compatibility (EMC)	EN 61326 (2005-12) for emission and immunity
Interfaces	mini-USB-B, Isolated USB port for PC connectivity SD card slot accessible behind instrument battery

Model Name	Description
Fluke 434 II	Three-Phase Energy Analyzer

	Included accessories

	BC430 Power Adapter
	International plug adapter set
	BP290 (Single capacity Li-ion battery) 28 Wh (8 hours or more)
	TLS430 Test lead and Alligator clip set
	WC100 color coding clips and regional decals
	i430flex-TF, 24 inch (61 cm) length, 4 flexible current probes
	8 GB SD card
	PowerLog on CD (includes operator manuals in PDF format)
	USB cable A - Mini B
	C1740 Soft Case


Cables and Hardware
GPS430	GPS430 Time Synchronization Module

Clips
AC285	AC285 SureGrip Alligator Clip Set

Batteries, Chargers and Adapters
BP290	2400 mAh Li-ion battery for Fluke 190 Series II
BP291	4800 mAh High capacity Li-ion battery ) for Fluke 190-seriesII
BC430	BC430 Line Voltage Adapter/Battery Charger
EBC290	EBC290 External Battery Charger, charges BP291 while outside instrument

Current clamps
90i-610s	90i-610s AC/DC Current Probe (600 A)
i30s	Fluke i30s AC/DC Current Clamp
i400s	i400s AC Current Clamp
i5sPQ3	i5sPQ3, 5 A ac Current Clamps, 3-pack
i1000s	i1000s AC Current Clamp (1000 A)
i3000s	i3000s AC Current Clamp

Options
HH290	Hanging Hook for ScopeMeter 190-Series II

Test Leads
TLS430	TLS430 Test Leads and Alligator Clips set
WC100	WC100 Color Localization Set
